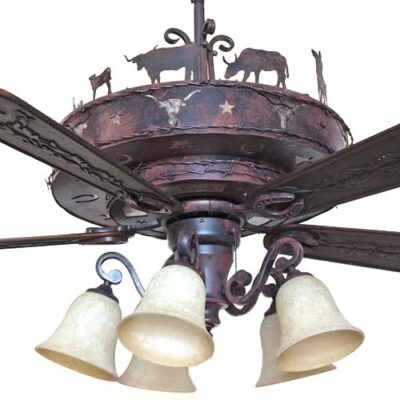

Copper Canyon Longhorn Ceiling Fan

From: $989.00

Years in the making, the Copper Canyon Longhorn Ceiling Fan is amazing to behold. From the authentic barbed wire, hand wrapped around the edges, to the multi-level design, this fan is both a piece of art and a working ceiling fan.





KIVA Select is our most popular configured item.

Please call us if you have any questions (800) 275-5482.

CUSTOMIZE YOUR ITEM BELOW

Each step will help you build your product

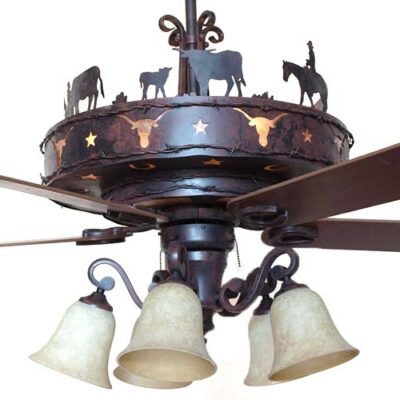

Years in the making, the Copper Canyon Longhorn Ceiling Fan is amazing to behold. From the authentic barbed wire, hand wrapped around the edges, to the multi-level design, this fan is both a piece of art and a working ceiling fan. We hand make each one to your order, allowing you to choose the color, liners, blades and other options. The chandelier model features 6-100W side lights with glass shades for ample room lighting.  The Longhorn is available in a wide range of custom painted colors with Amber or Silver Mica liners.

Customize Your Longhorn Ceiling Fan with These Options:

  • Several different blade colors including pine, walnut, natural pine, light oak, medium oak, antique pine and carved star blades.
  • Three different blade sizes including 52″, 56″ or 60″
  • A huge selection of finish colors for housing
  • Amber or Silver Mica Liner colors
  • Many scene designs to choose from
  • Combination ceiling fan remote control kit comes standard

To view our Rancher model click here.

Specifications

Specifications Ceiling Fan Diagram

  • KV52LHR-REGULAR
  • A: Fan blade to ceiling: 20″
  • B: Downrod – 12″ (Required to install fan)
  • D: Blade Diameter – 52″ or 56″ or 60″
  • H: Height – 22″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)
  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)
  • Forged Style Scroll Kit included
  • Blade Pitch: 14°
  • Weight: 41 Lbs
  • Motor: 188mm x 25mm Heavy Duty Motor
  • Bulbs: Uplight uses 4-25W candelabra bulbs max. (included)
  • UL Rated for Indoor Location Use
  • Max. Ceiling Slope: 32° (45° with adapter)
  • Shipping Weight: 48 Lbs
  • Container: Ships in two boxes
  • Airflow: 6700 CFM
  • Airflow Efficiency: 72 CFM per watt

Roofpitchtable

  • KV52LHR-SHORT
  • A: Fan blade to ceiling: 12.5″
  • B: Downrod – 4.5″ (Required to install fan)
  • D: Blade Diameter – 52″ or 56″ or 60″
  • H: Height – 14″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)
  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)
  • Blade Pitch: 14°
  • Weight: 41 Lbs
  • Motor: 188mm x 25mm Heavy Duty Motor
  • Bulbs: Uplight uses 4-25W candelabra bulbs max. (included)
  • UL Rated for Indoor Location Use
  • Max. Ceiling Slope: FLAT CEILINGS ONLY
  • Shipping Weight: 48 Lbs
  • Container: Ships in two boxes
  • Airflow: 6700 CFM
  • Airflow Efficiency: 72 CFM per watt

Shipping

Estimated Shipping Time: This item is made to order and averages 3-4 weeks, please call (800) 275-5482 or contact us for current lead times and information on rush orders.

Manual

[icon name=”download-alt” Size=”20″]Download Product Manual
