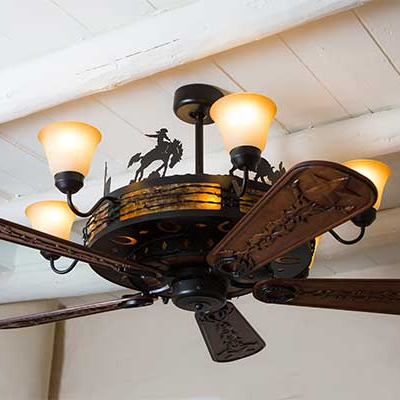

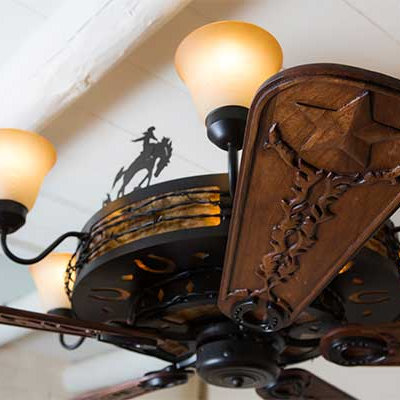

Copper Canyon Rancher Ceiling Fan and Chandelier Ceiling Fan

From: $989.00

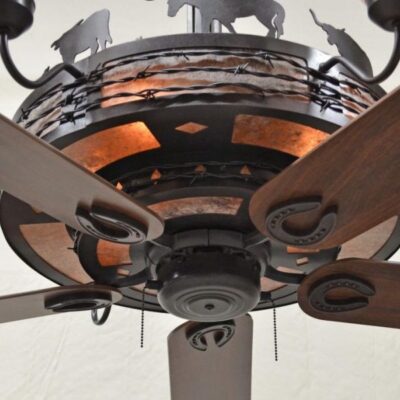

The Copper Canyon Rancher Ceiling Fan is a dramatic western Style chandelier that does not compromise its functionality as a ceiling fan.  The fan features real barbed wire that is back lit by the up lighting.  The chandelier model features 6-100W side lights with glass shades for ample room lighting.



KIVA Select is our most popular configured item.

Please call us if you have any questions (800) 275-5482

CUSTOMIZE YOUR ITEM BELOW

Each step will help you build your product

The Copper Canyon Rancher Ceiling Fan is a dramatic western Style chandelier that does not compromise its functionality as a ceiling fan.  The fan features real barbed wire that is back lit by the up lighting.  The chandelier model features 6-100W side lights with glass shades for ample room lighting.  The Rancher is available in a wide range of custom painted colors with Amber or Silver Mica liners. The chandelier offers sidelights with several glass shade options.

Customize Your Rancher Ceiling Fan with These Options:

  • Several different blade colors including pine, walnut, natural pine, light oak, medium oak, antique pine and carved star blades.
  • Three different blade sizes including 52″, 56″ or 60″
  • A huge selection of finish colors for housing
  • Amber or Silver Mica Liner colors
  • Many scene designs to choose from
  • Combination ceiling fan remote control kit comes standard

To view the Western Trails model click here.

Specifications

Specifications Ceiling Fan Diagram

  • KV52RAN – Rancher Ceiling Fan and Chandelier
  • A: Fan blade to ceiling: 21.5″
  • B: Downrod – 12″ (Required to install fan)
  • D: Blade Diameter – 52″ or 56″ or 60″
  • H: Height – 23″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)
  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)
  • Forged Style Scroll Kit included
  • Blade Pitch: 14°
  • Weight: 41 Lbs (51 Lbs for chandelier)
  • Motor: 188mm x 25mm Heavy Duty Motor
  • Bulbs: Uplight uses 4-25W candelabra bulbs max. (included) – Chandelier uses 6-100W standard bulbs max.
  • UL Rated for Indoor Location Use
  • Max. Ceiling Slope: 32° (45° with adapter)
  • Shipping Weight: 48 Lbs (58 Lbs for chandelier)
  • Container: Ships in two boxes
  • Airflow: 6700 CFM
  • Airflow Efficiency: 72 CFM per watt

Roofpitchtable

  • KV52RAN – Short Rancher Ceiling Fan
  • A: Fan blade to ceiling: 14″
  • B: Downrod – 4.5″ (Required to install fan)
  • D: Blade Diameter – 52″ or 56″ or 60″
  • H: Height – 15.5″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)
  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)
  • Blade Pitch: 14°
  • Weight: 41 Lbs
  • Motor: 188mm x 25mm Heavy Duty Motor
  • Bulbs: Uplight uses 4-25W candelabra bulbs max. (included)
  • UL Rated for Indoor Location Use
  • Max. Ceiling Slope: FLAT CEILINGS ONLY
  • Shipping Weight: 48 Lbs
  • Container: Ships in two boxes
  • Airflow: 6700 CFM
  • Airflow Efficiency: 72 CFM per watt

Shipping

Estimated Shipping Time: This item is made to order and averages 3-4 weeks, please call (800) 275-5482 or contact us for current lead times and information on rush orders.

Manual

Download Product Manual
