Copper Canyon Old Forge Ceiling Fan

From: $469.00

The Olde Forge Ceiling Fan is a hand made custom ceiling fan featuring the same premium designs as our ceiling lights and chandeliers with an illuminated center motor cover that also provides an attractive ceiling glow.The thick hammered steel fans are hand rolled and welded on the fan and then hand painted by our craftsmen in Albuquerque.



KIVA Select is our most popular configured item.

Please call us if you have any questions (800) 275-5482.

CUSTOMIZE YOUR ITEM BELOW

Each step will help you build your product

The Old Forge Ceiling Fan is a hand made custom ceiling fan featuring the same premium designs as our ceiling lights and chandeliers with an illuminated center motor cover that also provides an attractive ceiling glow. The thick hammered steel fans are hand rolled and welded on the fan and then hand painted by our craftsmen in Albuquerque. These fans are completely custom made to your order, allowing you to pick the designs, colors, liners, blades and other accessories.

Another Copper Canyon exclusive. You will not find these fans anywhere else or pay factory direct pricing for a USA made fan. It uses 3-25W candelabra bulbs on a separate circuit to allow for individual control of the top and bottom lights. The fan comes in any of our standard colors shown below and several blade spans and finish options. UL Rated for Indoor/Outdoor Damp Location Use – Call to order outdoor blades.  To view this product in our Lodge and Cabin series click here.

Specifications

Specifications Ceiling Fan Diagram

  • CF247 – 42″ and 52″
  • A: Fan blade to ceiling: 12.5″
  • B: Downrod – 4.5″ (Required to install fan)
  • D: Blade Diameter – 42″ or 52″
  • H: Height – 14.25″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)

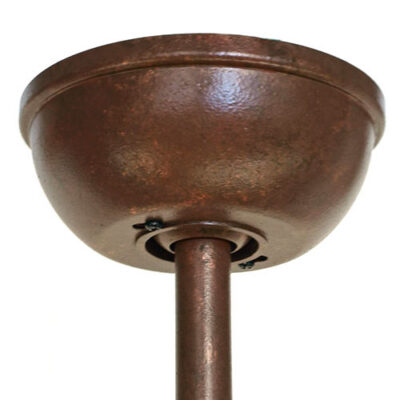

  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 42″ is for very small rooms (52″ is standard)
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)

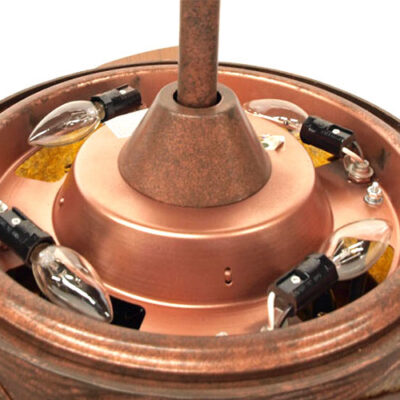

  • Accent Lighting inside Motor Housing
  • Blade Pitch: 14°
  • Weight: 28 Lbs
  • Motor: 188mm x 20mm Heavy Duty Motor
  • Bulbs: 3-25W candelabra bulbs max. (included)
  • UL Rated for Indoor/Outdoor Damp Location Use
  • Max. Ceiling Slope: 32° (45° with adapter)
  • Shipping Weight: 32 Lbs
  • Container: 26″ x 16″ x 12″
  • Airflow: 5900 CFM
  • Airflow Efficiency: 76 CFM per watt

Roofpitchtable

  • CF247 – 60″
  • A: Fan blade to ceiling: 12.5″
  • B: Downrod – 4.5″ (Required to install fan)
  • D: Blade Diameter – 60″
  • H: Height – 14.25″ from bottom of fan to ceiling
  • Downrod Outer Diameter: 0.75″ (Both ends threaded)
  • Ceiling Canopy Diameter: 5.5″
  • Assembled in USA from American and Imported Components
  • Lifetime Motor Warranty and 1 Year Unconditional on Everything Else
  • 3 Speed Reversible
  • Included Pull Chains (Remote package eliminates pull chains)
  • Accent Lighting inside Motor Housing
  • Blade Pitch: 14°
  • Weight: 30 Lbs
  • Motor: 188mm x 25mm Heavy Duty Motor
  • Bulbs: 3-25W candelabra bulbs max. (included)
  • UL Rated for Indoor/Outdoor Damp Location Use
  • Max. Ceiling Slope: 32° (45° with adapter)
  • Shipping Weight: 34 Lbs
  • Container: 26″ x 16″ x 12″
  • Airflow: 6369 CFM
  • Airflow Efficiency: 72 CFM per watt

Shipping

Estimated Shipping Time: This item is made to order and averages 3-4 weeks, please call (800) 275-5482 or contact us for current lead times and information on rush orders.

Manual

Download Product Manual
